SPECIFICATIONS
| Date of Manufacture: |
1969 |
| Total Airframe Hours: |
6,476
|
Optional Equipment
| Low Skid Gear |
Dual Controls |
| Rotor Brake |
Ground Handling Wheels |
| Sloping Avionics Panel |
Floor Protectors |
| Wedge Windows |
Range Extender |
| Door Openers |
L/H Pre-flight step |
| Heater |
Engine Relight |
| Facet Oil Filter |
. |

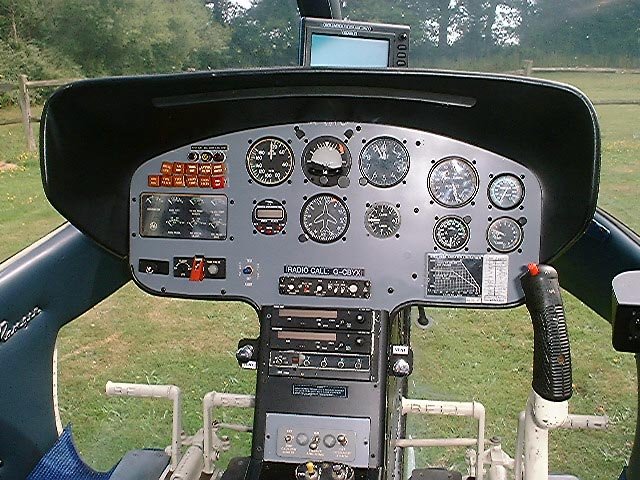

Avionics
| Dual VHF Comms |
King KY 96A |
| Transponder |
King KT 76A |
| GPS/Moving Map |
Skyforce Skymap IIIC |
| Audio Box |
Five Place Intercom |
| Headsets x2 |
. |
Exterior
Light blue, Gunmetal Band

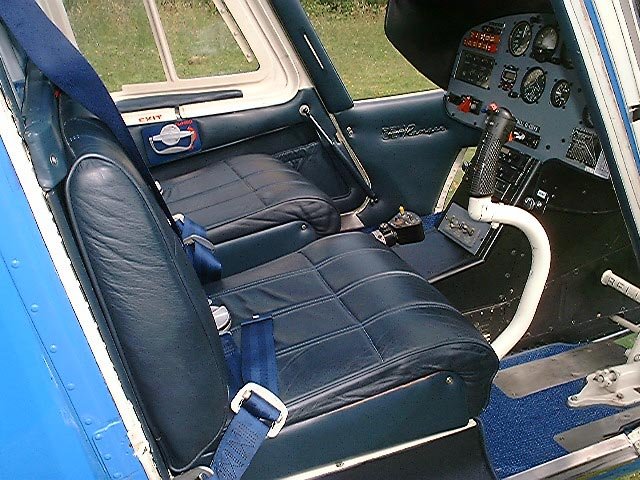

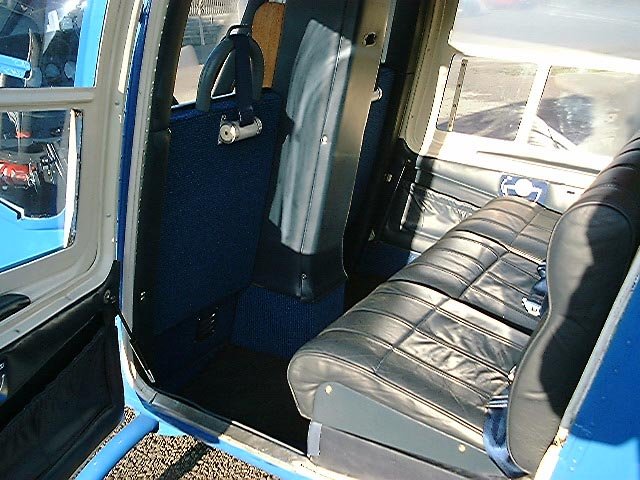

Interior
Corporate deluxe five place interior in blue leather with blue wool carpet
Details believed to be correct but subject to verification by inspection.
|
Component Status
(as at 6,476 airframe hours) |
| Item |
Life |
Hrs - Retirement |
Hrs - Overhaul |
| Main Rotor Blades (x2) |
5,000 |
2,946 |
- |
| Main Rotor Hub Assembly |
1,200 |
- |
306 |
| Main Rotor Grips (x2) |
4,800 |
2,714 (x2) |
- |
| Main Rotor Mast Assembly |
3,000 (1,500 I) |
- |
2,106 (616 I) |
| Main Rotor Trunnion |
4,000 |
3,243 |
- |
| TT Straps |
1,200 (2 yrs) |
(08/07) |
- |
| Support Swashplate |
4,800 |
4,056 |
- |
| Swashplate Assembly |
4,800 |
- |
1,515 |
| Main Transmission |
4,500 (1,500 I) |
- |
3,606 (606 I) |
| Hydraulic Pump and Reservoir |
3,600 |
- |
315 |
| Freewheel Assembly |
3,000 (1,500 I) |
- |
2,209 (709 I) |
| Tail Rotor Blades (x 2) |
2,500 |
1,044 (x 2) |
- |
| Tail Rotor Yoke |
4,800 |
3,495 |
- |
| Tail Rotor Hub |
2,400 |
- |
1,506 |
| Tail Rotor Gearbox |
6,000 |
- |
5,747 |
| Hydraulic Servos (x 3) |
3,600 |
- |
1,222/1,222/1,245 |
|
|
|
|
| Compressor |
3,500 |
- |
1,204 |
| Impellor |
3,550 (9,150 C) |
1,254 (6,193 C) |
- |
| Turbine Assembly |
3,500 (1,750 I) |
- |
2,069 (319 I) |
| Wheel 1 |
1,775 (3,000 C) |
344 (1,155 C) |
- |
| Wheel 2 |
1,775 (3,000 C) |
344 (1,155 C) |
- |
| Wheel 3 |
4,550 (6,000 C) |
3,119 (4,155 C) |
- |
| Wheel 4 |
4,550 (6,000 C) |
3,119 (4,155 C) |
- |
| Fuel Control |
2,500 |
- |
1,320 |
| Governor |
2,000 |
- |
1,684 |
| Fuel Pump |
2,250 |
- |
1,703 |
| Fuel Nozzle |
2,500 |
- |
203 |
| Bleed Valve |
1,500 |
- |
1,184 |
