1984 Eurocopter
AS350B Squirrel

SPECIFICATION

Date of Manufacture: 1983
Total Airframe Hours: 6,800


Optional Equipment

Dual Controls Low Skid Gear
Pilot Windshield Wiper Deluxe Soundproofing
Cabin Fire Extinguisher Cabin Heating
Heated Pitot Sand Filter

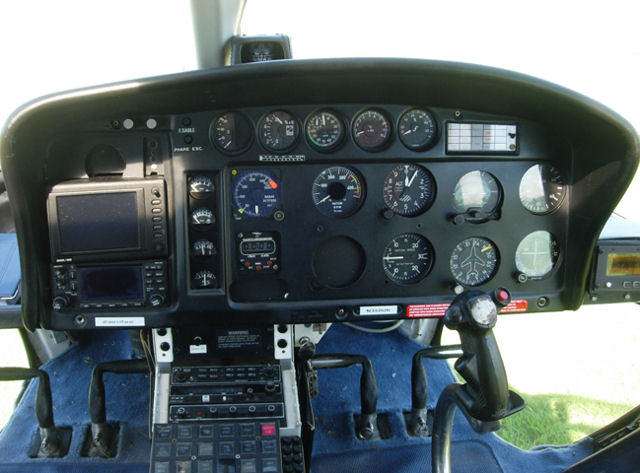

Avionics

VHF Comm Bendix King KY 196A
DME Bendix King KN 62A
Transponder Bendix King KT76A
Artificial Horizon SFENA H140
Turn & Slip Indicator .
Intercom Bendix King KMA 24
GPS Skymap
Headsets x 2 Peltor

Exterior
Metallic black with silver stripe. New

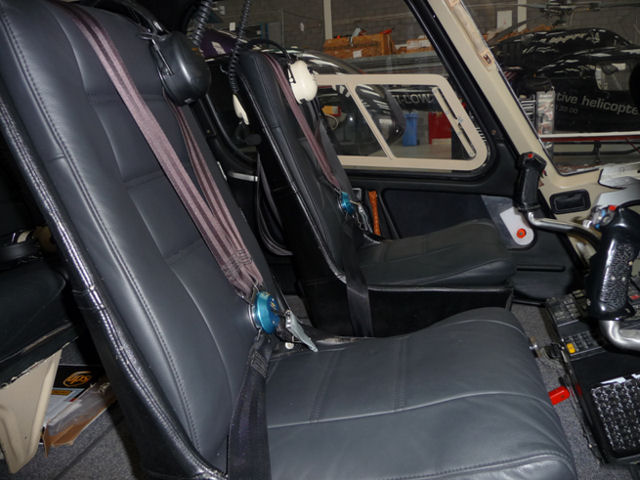

Interior
Dark blue leather seats and pale blue carpet

Component Status
(as at 6,800 airframe hours)

PROVISIONAL

Item Life Hrs - Remaining
Main Rotor Blades (x3) 20,000 14,368/18,868/18,077
Starflex Body 2,200 507
Spherical Thrust Bearings (x3) 6,400 4,707
Upper Sleeves (x3) 4,000 1,203
Lower Sleeves (x3) 4,000 1,203
Bevel Gear 3,000 2,508 (2025)
Oil Pump 3,000 2,508 (2028)
Epicyclic Gear 3,000 2,800 (2029)
Tail Rotor Gearbox 3,000 2,646
Tail Rotor Blade Assembly 4,000 747
Tail Rotor Drive Shaft and Bearings 3,600 3,600
Hydraulic Servo 1,800 577 (2018)
Hydraulic Servo 1,800 1,560 (2025)
Hydraulic Servo 1,800 1,446 (2025)
T/R Hydraulic Servo 1,800 94
Swashplate Bearing 4,800 3,406

Engine

Life Hrs - Remaining
Comp Axial Wheel 14,000 C 11,861 C
Comp Impellor 14,000 C 7,243 C
Comp Rotor 14,000 C 7,243 C
Injection Wheel 10,000 C 4,715 C
Module 1 - Accessory Gearbox OC OC (12/2015)
Module 2 - Axial Compressor 6,000 4,536 (04/2023)
Module 3 - Gas Generator 2,000 1,063 (12/2015)
Module 4 - Free Turbine 3,000 1,036 (12/2015)
Module 5 - Reduction Gearbox 3,000 1,489 (12/2015)
Freewheel Shaft Assembly 3,500 3,151 (05/2017)
FCU 3,000 2,731 (10/2014)
Starter Generator 2,400 2,046
Free Turbine Disc 10,000 C 7,687 C

Fresh 6 Year Inspection/500 Hour Engine Inspection
New Airworthiness Review Certificate (ARC)
Empty Weight 1222.0 kgs.
