RCR Aviation - 1991 Eurocopter AS355F2 IFR

Eurocopter
AS355F2 IFR
Twin Squirrel

SPECIFICATIONS

Date of Manufacture:	1991
Total Airframe Hours:	3,616

Optional Equipment

Dual Controls	High Skids
Rear LH & RH Wedge Windows	Bleed Air Heater and Demister
Pilot Windshield Wipers	Emergency Floats
Dual Batteries	Engine Fire Extinguishers
L/H Sliding Door	Rotor Brake

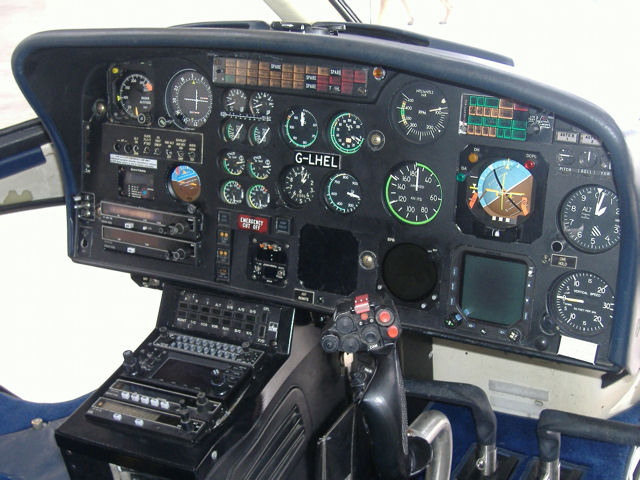

Avionics

Autopilot	SFIM
VHF Comm	King KY 196A
Com/Nav/GPS	Garmin GNS 430
HSI	EFIS 40
ADF	King KR 87
DME	King KN 63
Transponder	King KT 79 +encoder
Rader Altimeter	King KRA 405
Audio Panel	King KMA 24H
ELT	.
Stormscope	.
TCAS1	.

Exterior
White fuselage with gold accent lines and blue tail.

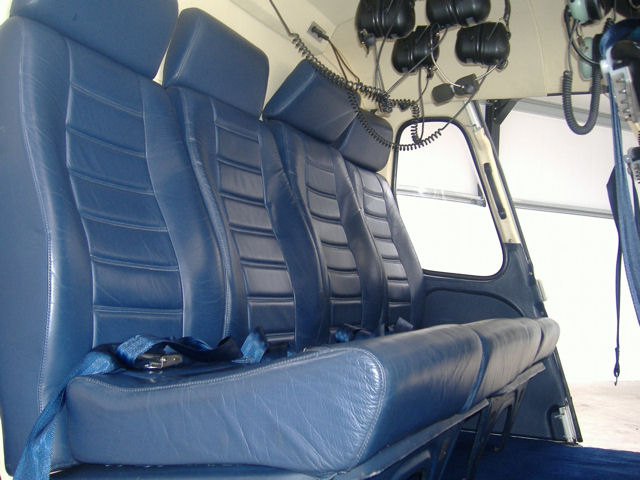

Interior
VIP leather upholstery.

Details believed to be correct but subject to verification by inspection.

Component Status
(as at 3,616 airframe hours)

PROVISIONAL AND PROJECTED

Item Life Hrs - Retirement Hrs - Overhaul

Main Rotor Blades x3 20,000 17,104/19,190 (x2) -

Starflex Body 2,200 955 -

Spherical Bearings Assembly (x3) 6,400 5,155 -

Upper Sleeves (x3) 4,000 2,275 -

Lower Sleeves (x3) 4,000 2,275 -

Main Rotor Servos (x3) 3,000 - 1,416/1,760/1,768

MRGB Bevel Gear 3,000 - 2,545

MRGB Epicyclic Gear 3,000 - 1,755

Coupling Gearbox 3,000 - 2,545

Oil Pump Assembly 3,000 - 2,545

Tail Rotor Gearbox 3,000 - 2,182

Tail Rotor Blade Assembly 4,000 2,503 -

Tail Rotor Servo 1,800 - 4

Engines Life Hours Remaining

No.1 No.2

Ret O/H Ret O/h

Compressor Assembly 3,500 - 2,169 - 3,395

Impellor 3,550
(9,150 C) 2,194
(7,172 C) - 3,420
(8,942 C) -

Turbine Assembly 3,500 - 568 - 587

Wheel No 1 1,775
(3,000 C) 352
(316 C) - 513
(791 C) -

Wheel No 2 1,775
(3,000 C) 352
(316 C) - 513
(791 C) -

Wheel No 3 4,550
(6,000 C) 1,619
(991 C) - 1,637
(1,084 C) -

Wheel No 4 4,550
(6,000 C) 1,619
(991 C) - 1,637
(1,084 C) -

Bleed Valve 1,500 - 255 - 835

Fuel Nozzle 2,500 - 1,919 - 1,555

FCU 2,500 - 908 - 1,942

Fuel Pumps 4,000 - 383 - 335

PTG 2,000 - 1,384 - 343

Starter Generator 1,200 - 1,131 - 619

Item	Life	Hrs - Retirement	Hrs - Overhaul
Main Rotor Blades x3	20,000	17,104/19,190 (x2)	-
Starflex Body	2,200	955	-
Spherical Bearings Assembly (x3)	6,400	5,155	-
Upper Sleeves (x3)	4,000	2,275	-
Lower Sleeves (x3)	4,000	2,275	-
Main Rotor Servos (x3)	3,000	-	1,416/1,760/1,768
MRGB Bevel Gear	3,000	-	2,545
MRGB Epicyclic Gear	3,000	-	1,755
Coupling Gearbox	3,000	-	2,545
Oil Pump Assembly	3,000	-	2,545
Tail Rotor Gearbox	3,000	-	2,182
Tail Rotor Blade Assembly	4,000	2,503	-
Tail Rotor Servo	1,800	-	4

Engines	Life	Hours Remaining
		No.1		No.2
		Ret	O/H	Ret	O/h
Compressor Assembly	3,500	-	2,169	-	3,395
Impellor	3,550 (9,150 C)	2,194 (7,172 C)	-	3,420 (8,942 C)	-
Turbine Assembly	3,500	-	568	-	587
Wheel No 1	1,775 (3,000 C)	352 (316 C)	-	513 (791 C)	-
Wheel No 2	1,775 (3,000 C)	352 (316 C)	-	513 (791 C)	-
Wheel No 3	4,550 (6,000 C)	1,619 (991 C)	-	1,637 (1,084 C)	-
Wheel No 4	4,550 (6,000 C)	1,619 (991 C)	-	1,637 (1,084 C)	-
Bleed Valve	1,500	-	255	-	835
Fuel Nozzle	2,500	-	1,919	-	1,555
FCU	2,500	-	908	-	1,942
Fuel Pumps	4,000	-	383	-	335
PTG	2,000	-	1,384	-	343
Starter Generator	1,200	-	1,131	-	619
